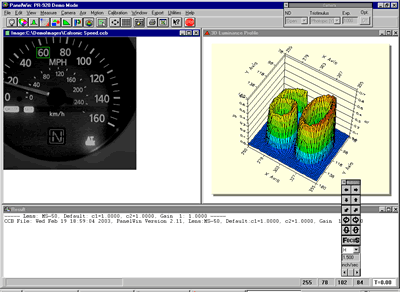

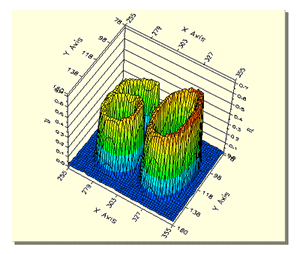

PanelWin™ screen showing 3D Luminance Profile of Area of Regard defined by the green square surrounding the "100" in the digital image at the left of the screen.

PanelWin™ software is the latest in the family of Windows based PR-900 Video Photometer control software.

PanelWin™ has been specifically designed measure and analyse panels in systems such as military and commercial ground vehicles (cars, trucks et al) and military, commercial and private aircraft.

Speed up measurements by using the advantages of a two dimensional detector system like the PR-900 and PR-920, then using PanelWin™ software to analyse the result.

With this powerful combination, what might have taken hours using traditional single measurement techniques, can now be done in minutes.

Automate your measurement sequences by using the built in Macro functions. It's as easy as enabling the Macro record feature, performing the desired measurements and calculations, then stopping the Macro recorder. Your steps are automatically converted into PanelWin™ macro code.

Calibrate your PR-900 or PR-920 with PanelWin™ insuring continuous accuracy and reducing down time (requires calibration standards - not included). PanelWin™ software can be added to your existing PR-900 or PR-920 software suite (e.g. VideoWin™) to extend the capabilities of your system.

PanelWin™ software can be added to your existing PR-900 or PR-920 software suite (e.g. VideoWin™) to extend the capabilities of your system.

Up to 100 user selectable spots within an Area of Regard can be analyzed simultaneously for luminance, contrast or colour .
