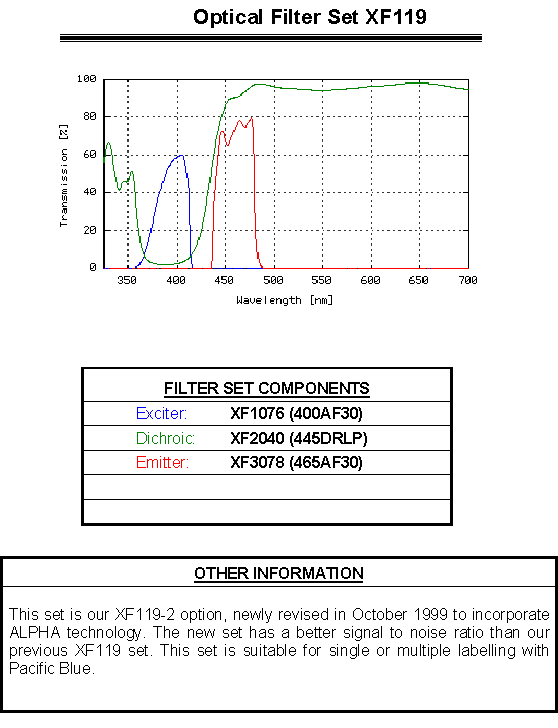

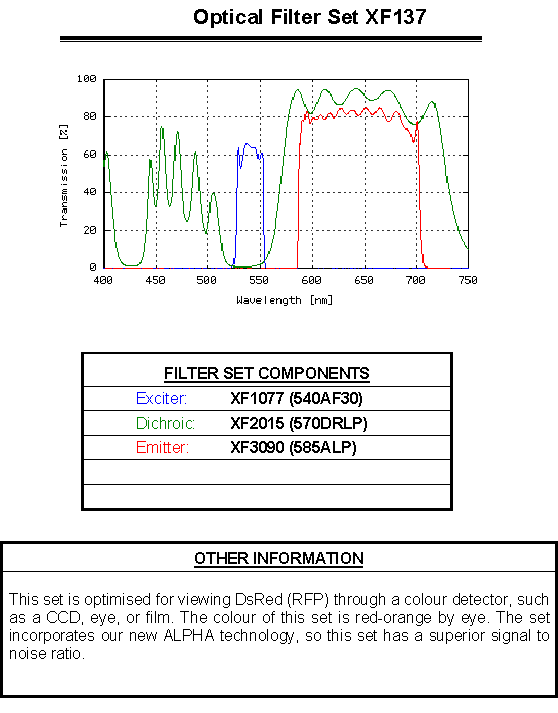

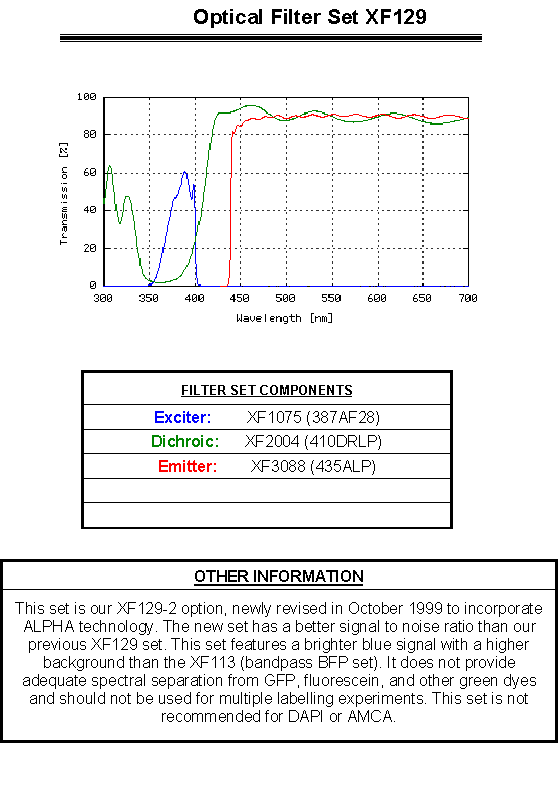

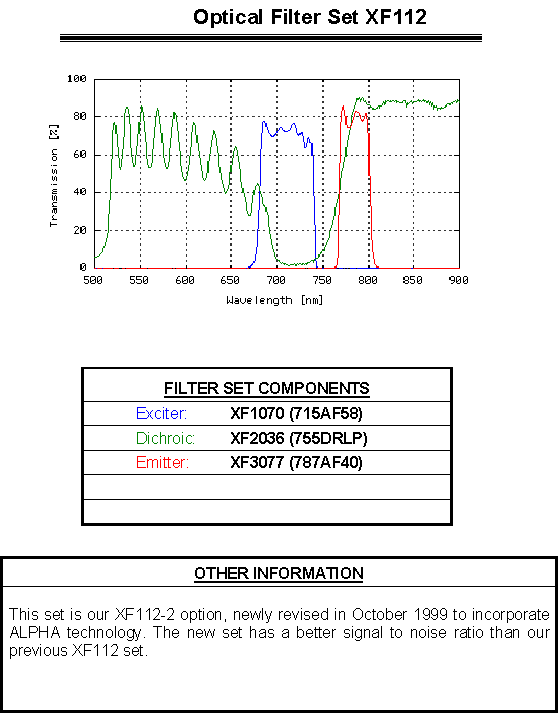

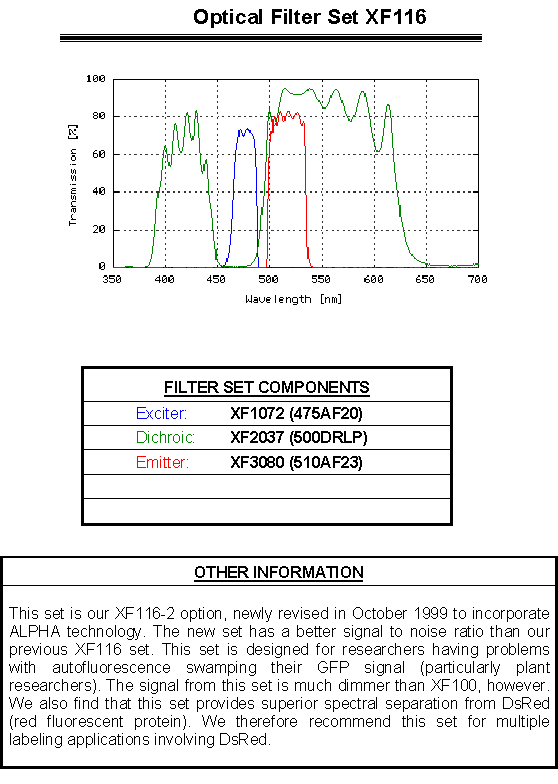

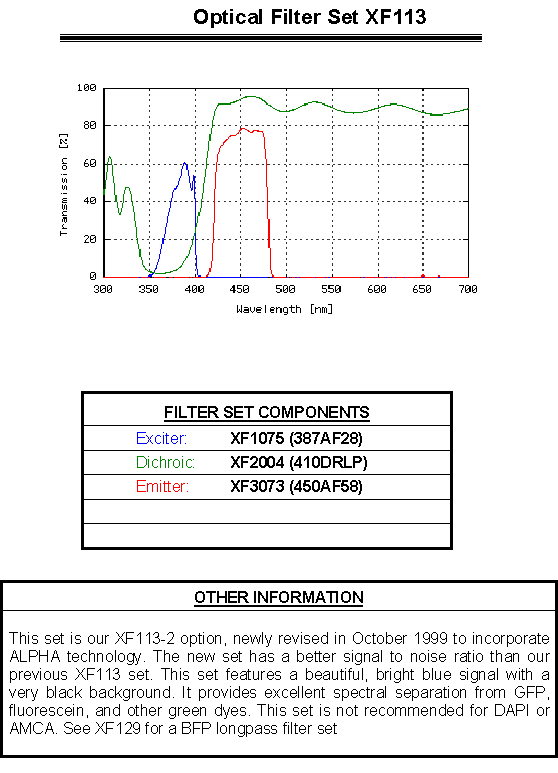

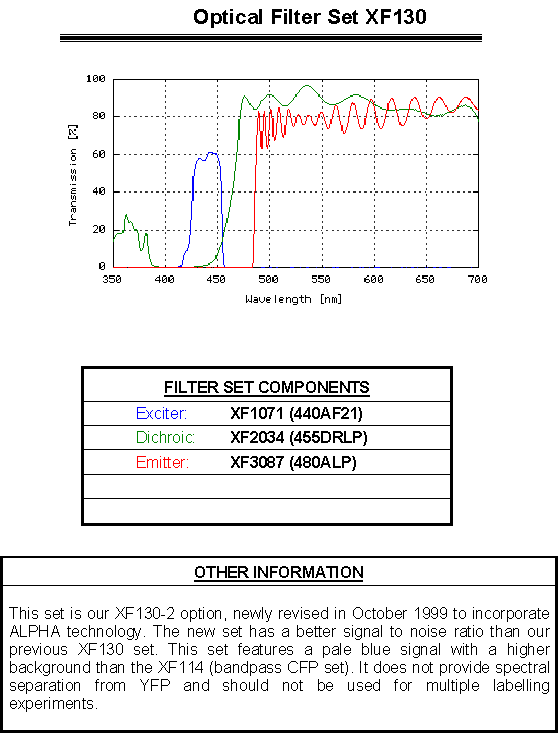

ALPHA Vivid sets use proprietary APLHA technology for both the excitation and the emission filters. Passband slopes are extremely steep, with transmission approaching unity in both the excitation and emission channels. The crossover between excitation and emission has the highest optical density (OD) of any available filter sets. ALPHA Vivid sets are manufactured without auto-fluorescent absorption glass typically used in manufacturing filters. ALPHA Vivid sets are listed for commonly used fluorophores and can be custom designed for any dye. With extreme edge steepness, high throughput, and high density crossover blocking, ALPHA Vivid sets are the current state-of-the-art for signal-to-noise in low light level imaging applications. Click on any of the part numbers to view a spectrum. Part Number Fluorophores Application Components Type Part Number Description XF100-2 GFP Fluoroscein (FITC) Alexa Fluor® 488 Cy2® DiO Fluo-4 rsGFP See XF115-2 for longpass emitter Exciter Dichroic Emitter XF1073 XF2010 XF3084 475AF40 505DRLP 535AF45 XF101-2 TRITC Cy3® MitoTracker® Orange See XF108-2 for bandpass emitter Exciter Dichroic Emitter XF1074 XF2017 XF3085 525AF45 560DRLP 565ALP XF102-2 Texas Red®/Texas Red®-X Cy3.5® MitoTracker® Red - Exciter Dichroic Emitter XF1067 XF2029 XF3081 560AF55 595DRLP 645AF75 XF103-2 Propidium Iodide Ethidium bromide Nile Red - Exciter Dichroic Emitter XF1074 XF2016 XF3081 525AF45 560DCLP 645AF75 XF104-2 YFP Rhodamine Green™ Alexa Fluor® 532 See XF105-2 for longpass emitter Exciter Dichroic Emitter XF1068 XF2030 XF3074 500AF25 525DRLP 545AF35 XF105-2 YFP Rhodamine Green™ Alexa Fluor® 532 See XF104-2 for bandpass emitter Exciter Dichroic Emitter XF1068 XF2030 XF3082 500AF25 525DRLP 530ALP XF108-2 TRITC Cy3® MitoTracker® Orange See XF101-2 for longpass emitter Exciter Dichroic Emitter XF1074 XF2017 XF3083 525AF45 560DRLP 595AF60 XF110-2 Cy5® APC (allophycocyanin) DiD (DilC18(5)) - Exciter Dichroic Emitter XF1069 XF2035 XF3076 630AF50 650DRLP 695AF55 XF111-2 DsRed Black & white imaging Exciter Dichroic Emitter XF1077 XF2015 XF3089 540AF30 570DRLP 575ALP XF112-2 Cy7® To-PRO™ 5 DiR (DilC18(7)) - Exciter Dichroic Emitter XF1070 XF2036 XF3077 715AF58 755DRLP 787AF40 XF113-2 BFP LysoSensor™ Blue (pH 5) See XF129-2 for longpass emitter Exciter Dichroic Emitter XF1075 XF2004 XF3073 387AF28 410DRLP 450AF58 XF114-2 CFP SpectrumAqua® See Xf130-2 for longpass emitter Exciter Dichroic Emitter XF1071 XF2034 XF3075 440AF21 455DRLP 480AF30 XF115-2 GFP Cy2® Fluoroscein (FITC) Alexa Fluor® 488 See XF100-2 for bandpass emitter Exciter Dichroic Emitter XF1073 XF2010 XF3086 475AF40 505DRLP 510ALP XF116-2 rsGFP Fluoroscein (FITC) Alexa Fluor® 488 Cy2® For multiple labelling with DsRed Exciter Dichroic Emitter XF1072 XF2037 XF3080 475AF20 500DRLP 510AF23 XF119-2 Pacific Blue™ - Exciter Dichroic Emitter XF1076 XF2040 XF3078 400AF30 445DRLP 465AF30 XF129-2 GFP LysoSensor™ Blue (pH 5) See XF113-2 for bandpass emitter Exciter Dichroic Emitter XF1075 XF2004 XF3088 387AF28 410DRLP 435ALP XF130-2 CFP SpectrumAqua® See XF114-2 for bandpass emitter Exciter Dichroic Emitter XF1071 XF2034 XF3087 440AF21 455DRLP 480ALP XF137-2 DsRed Colour film & eye Red-orange emitter Exciter Dichroic Emitter XF1077 XF2015 XF3090 540AF30 570DRLP 585ALP   Fluorophore Reference Table Filter Sets Exciters Dichroics Emitters Filter Holders Neutral Density Filters Accessory Filters Request a Quote
